As I had no deadline for this I worked on it randomly, spending almost half a year completeing it. Here is the tutorial for the Pip Boy 3000

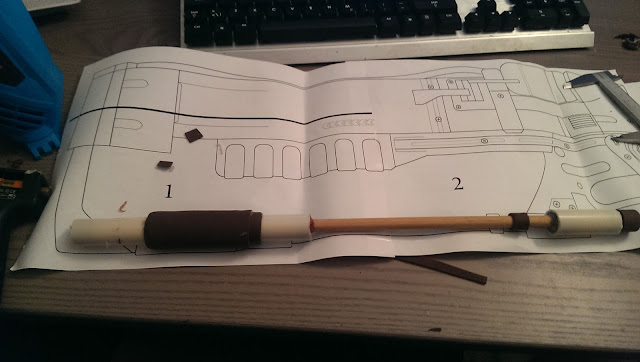

I got the blue prints printed to scale. For the lower rod I used a wooden flag pole with different plastic tubes and foam to create the different circumferences.

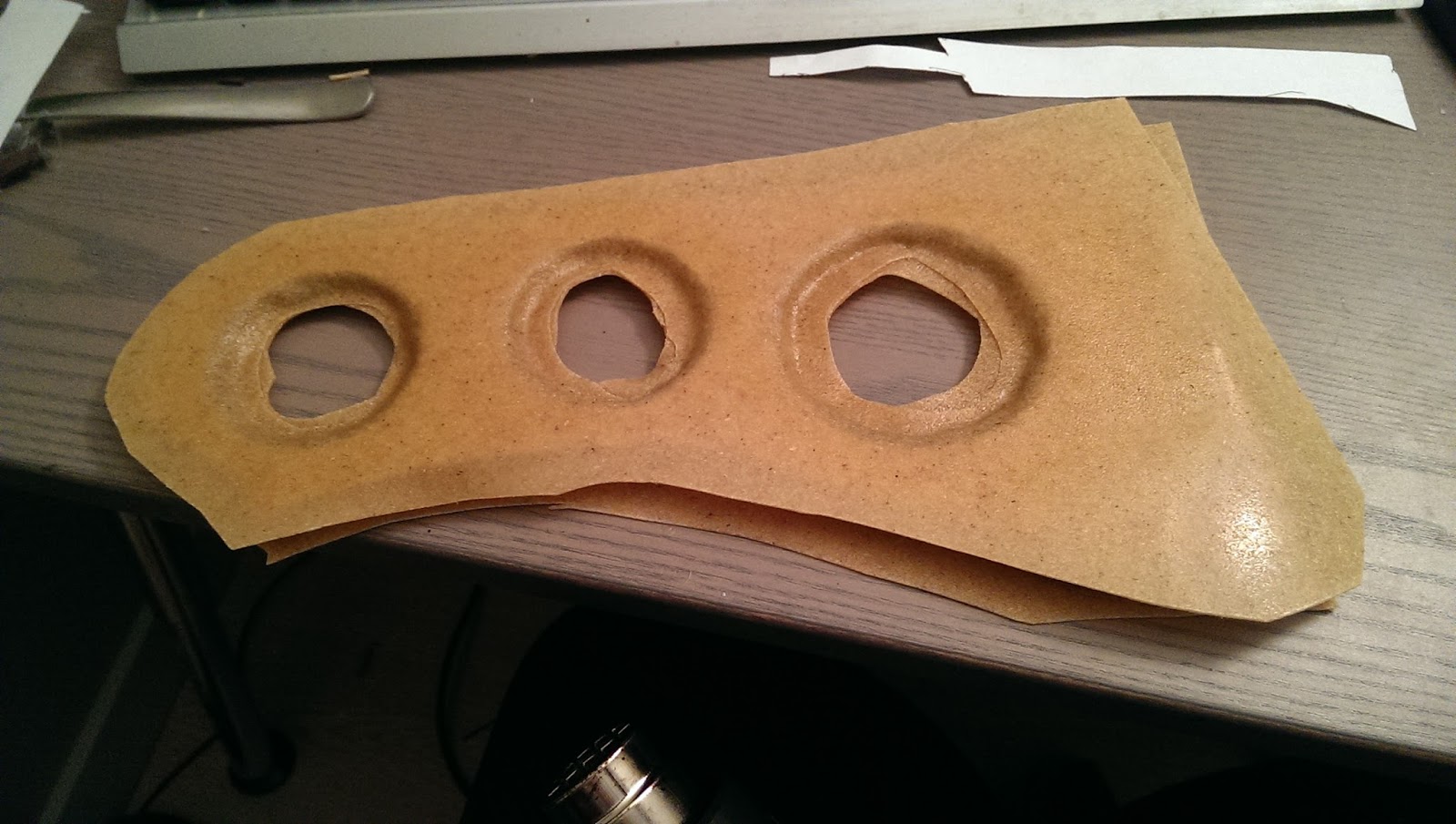

With foam, foamboard, cardboard and worbla I started the build. This will be the tip of the barel.
Started again with cardboard sandwitched around foam to build up the main shape of the stock.
Cover with worbla to make it more sturdy.
Adding details with worbla
I used different bottle caps as molds for some of the round parts.
Back to the barrel. The innter structure is cardboard and everything is again covered with worbla. It is wasy to attach parts together when everything is worbla as this material sticks very well to itself.
I used foam mats and clay to build up the back part of the barrel.
The forstock was again built out of foam and covered in worbla. To get the details right I figured it would be easier to build it seperate and then attach it when done.
Even though a worbla covered Laser rifle looks cool (or unique... or boring) I need a little paint. First the entire prop was primed with wood glue. Then I painted the entire gun in a silver base paint.
The barrel was painted green and tubes yellow.
All the base colors are now in place and we are ready for details and all the dirt and grime.
